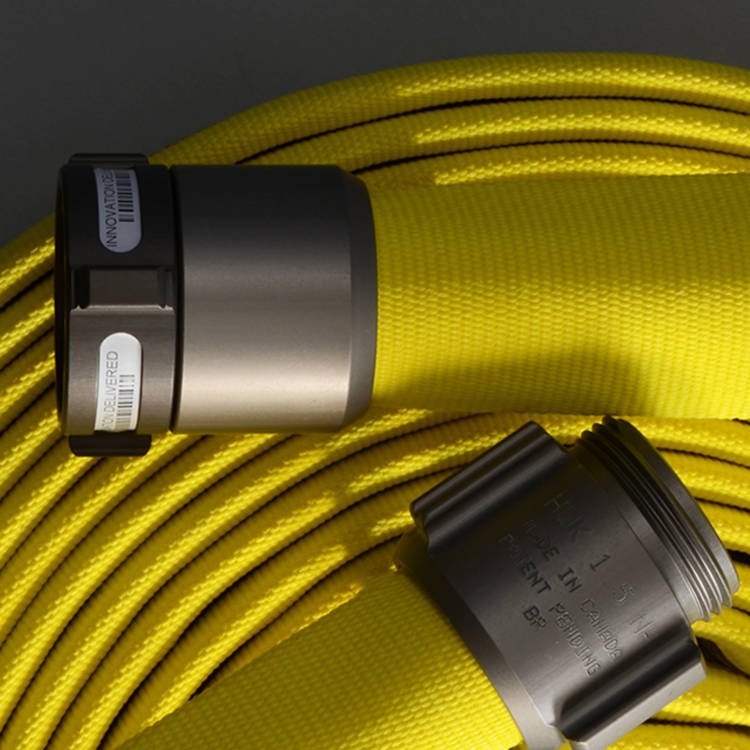

MTFS 800 DP Fire Hose


MTFS-800-DP™ is a premium attack hose designed for everyday wear & tear to get the job done. Its light weight reduces firefighter fatigue and stress. Trusted quality on a budget.

Ideal for high pressure applications, pre-connected cross-lay attack hose, Rapid intervention team (RIT) hose, high-rise hose kits, pre-connected front bumper attack hose, de-contamination and wash down hoseand potable water transfer (stencilled).


Specification Imperial Measurement Metric Measurement

Product Details


The inner alone shall be an NFPA compliant Attack hose, made with 100% filament polyester warp and weft yarn. The outer jacket shall be made with virgin spun polyester warp yarn and a minimum of 10 filament polyester weft yarn picks per inch (394 per Meter). The outer jacket shall be impregnated in one of the standard NFPA colors with high performance polymeric dispersion.


The lining (waterway) must be made from polyurethane and must be applied using a fused process that welds the polyurethane directly to the textile while the hose is being woven, without the use of adhesives or hot melt. The fused lining process must create a virtually inseparable unit without the use of adhesives, yielding an extremely low friction (pressure) loss by filling in the corrugations of the weave, creating an ultra thin and smooth waterway. Fire hose made using adhesives of any type do not meet this specification. The lining shall be approved for use with potable water.

FLow & Friction Loss

1 ¾ inch (44mm) diameter, 100 US GPM (379 LPM), shall not exceed 8.5 PSI (59 KPa) loss per 100 feet (30.5 M).

Kink Testing

A full length will withstand a hydrostatic pressure of 600 psi / 4140 kPa while kinked.

Coupling Specification

The Hard Coat anodized couplings shall be manufactured in North America, and permanently labeled with country of origin. They shall be expansion ring type. The male coupling and female swivel nut must both have a recessed area to facilitate color and bar coding and/or identification markings.


The adhesion shall be such that the rate of separation of a 1 ½” / 38mm strip of polyurethane, transversely cut, shall not be greater than 1/4” / 6mm per minute under a weight of 12 lbs / 5.5 kg.

Additional Specs

Each length of fire hose shall not weigh more than indicated in the specification table

The hose must remain flexible to -65°F (-55°C) as per test UL-19.

Minimum service, test and burst pressures shall be as detailed in the specification table.

Hose must be manufactured to meet or exceed all NFPA 1960 standards.

Both hose and couplings must be manufactured in North America and be USMCA/CUSMA compliant.

The fire hose shall have a 2-10 warranty, as described below.

  • “2” denotes two-year “all hazards” warranty against any damage incurred
    during fire fighting
  • “10” denotes ten-year warranty against manufacturing defects

Full warranty terms available upon request.

Frequently Asked Questions

What kind of fire hose does Mercedes Textiles manufacture?

Mercedes Textiles specializes in manufacturing premium double-jacket polyurethane fire hose. The inner jacket features our unique Mertex lining — not EDM/rubber or nitrile — for unrivaled performance and superior quality.

From the hydrant to the nozzle, Mercedes manufactures both supply and attack fire hose in all standard sizes. We're known for our legendary KrakenEXO line, but we offer other quality lines for a variety of applications and priorities. We've got the hose you need, guaranteed.

All Mercedes hose and couplings are manufactured from in North America.

What is Mertex® lining and how does it affect friction loss in fire hose?

Mercedes Textiles developed a patented weave process for our Mertex® inner hose linings. We weave a molten lining material directly into the fabric jacket at the loom. This offers a superior waterway — free from adhesives, glues or other bonding agents. The smoother surface minimizes turbulence and friction to deliver greater water flow at the discharge end. Mertex® lining also ensures your hose will never delaminate!

What does the patented Breather™ Technology stripes on the hose do?

Mercedes Textiles' patented BreatherTechnology is an exclusive weave process that releases trapped air and water for superior packability, while also adding flexibility and strength. We currently incorporate these exclusive stripes into our large diameter hose MegaFlo® Breather and our newest KrakenEXO SUPER II™.

Do Mercedes Textiles hose products meet the latest NFPA 1961 requirements?

We take fire hose standards seriously – because YOU are on the line, and that matters to us. Mercedes is committed to ensuring every hose we manufacture meets or exceeds the latest NFPA 1960 (1961) standard. We have all the necessary testing equipment for each requirement, including the new UL-19 Radiant Heat testing required as of March 2021.

Have Mercedes Textiles products been third-party tested & approved?

On top of our own internal testing, we go above and beyond for many of our attack hose lines by submitting them to Underwriters Laboratory (UL) for third-party testing and approval. UL provides safety-related certification, validation, testing, inspection, auditing, advising and training services for fire hose products. Mercedes is world-renown for the premium quality, detailed specifications and superior performance of our fire hose.

The international insurance carrier FM Global provides an independent testing division. Using scientific research and testing, FM Approvals make sure products conform to the highest standards for safety and property loss prevention. They follow five steps to make sure the products they’re testing meet quality guidelines. Products that pass get the “FM APPROVED” mark.

What is the warranty on Mercedes Textiles fire hose?

Mercedes takes pride in our products. We understand that a lot rides on their performance – from efficiency to safety. So when you have our lines, you can rest assured we have your back.

On most of our municipal products, we include either a 10-L and/or 2-10-L warranty – the best in the industry.

  • “2” denotes two-year “all hazards” warranty against any damage incurred
    during fire fighting
  • “10” denotes ten-year warranty against manufacturing defects
  • “L” denotes lifetime warranty against liner delamination

Full warranty terms available on our main site.
